List Magnetik: Coating thickness measurement in tubes and interiors

Coating thickness measurements are often carried out on surfaces, and so many devices are designed for vertical placement of a probe with plenty of upward space. But what do you do if there is not enough space to place the probe "from above"? The probes from List Magnetik are designed to swivel through 90°. This is standard on the compact and robust Top-Check measuring device - if measurements need to be taken under a steel beam, the probe can be swiveled to allow access into corners and openings.

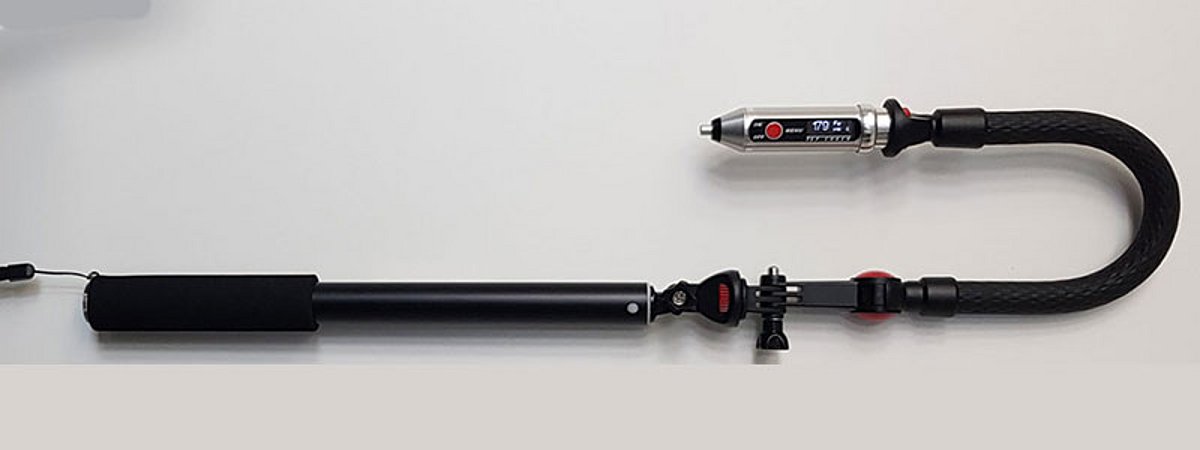

Measuring in pipes becomes more difficult when it goes deeper or the inside diameter is too narrow to push the device in. The DX1-FT probe is ideal for measuring in a pipe with an internal diameter of 10 mm or more and a measuring depth of up to 60 mm. For thicker coatings and larger internal diameters, the DX6-FT probe is recommended. Both are operated on the Mega-Check DX coating thickness gauge. List-Magnetik even has a solution for the inner wall of a boiler: a special telescopic rod is available for this purpose, which makes such measurements possible in a simple way. With the Top-Check telescopic set, the arm can be extended by 1.70 meters and any angle up to 180 degrees can be set. The Top-Check Ferro-1000 coating thickness gauge can be placed gently on the coating and is forgiving if it cannot be positioned exactly vertically - the measurement is still accurate. The measured value can be transferred immediately to an Android mobile device via the Bluetooth interface, so that the results of the measurement can be seen and heard there.
