Modular coating system for agricultural machinery parts

A manufacturer paints, cleans and dries agricultural machinery parts in a modular coating system that is already designed for subsequent expansion. The variable system offers a choice between powder and wet paint.

Horsch's bright red agricultural machinery is becoming increasingly common on Brazil's fields, as the German manufacturer's share of the Brazilian agricultural machinery market continues to grow. The machine parts are painted at the company's own site in Curitiba. There, up to 65 tons of steel per week run through the still young jumbo coating system from Meeh. It is modular and designed with sufficient expansion options, making it ideally suited to Horsch's dynamic development in South America.

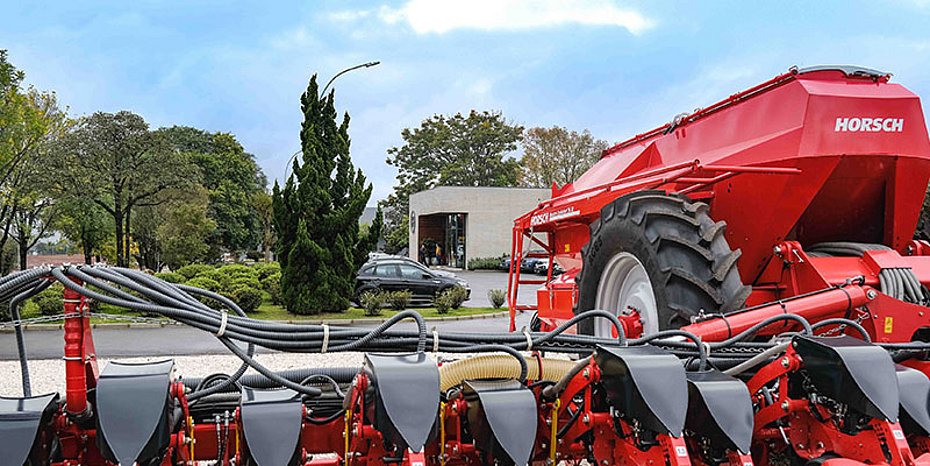

Every tenth precision planter in Brazilian fields already bears the characteristic red of the German company Horsch Maschinen GmbH. The internationally positioned family business from Schwandorf has also been present in South America since 2015. Initially, the company was still working in rented premises in Brazil, but in 2020 Horsch invested in its own land and built the current company headquarters in Curitiba in the state of Paraná. With the buildings completed in 2023, Horsch is also able to expand its vertical range of manufacture and relocates all work areas to its own premises. After all, there is no shortage of space. "The actively used company premises here in Curitiba alone cover 160,000 square meters, 25,000 of which are under roof. A further 240,000 square meters are available to us in the form of open spaces and meadows right next door," says Mathias Boldt, Production Manager at Horsch do Brasil, describing the site. They are therefore installing an impressive coating system in the extensive factory halls as part of the new building. Boldt is supported in the planning by experienced colleagues from Germany, where Horsch has been successfully operating several coating centers for years. For the ambitious project in Brazil, however, the planning team opted for a new partner and awarded the contract to Meeh Pulverbeschichtungs- und Staubfilteranlagen GmbH from the Swabian town of Wimsheim.

The fact that the agricultural engineers are even aware of the Swabians is probably due to Horsch's good business situation and the special Meeh conveyor technology. At the time of the plans for Brazil, the busy Horsch painting center in Ronnenburg was placing orders with external contract coaters who work with jumbo coat systems. "This is where we first saw Meeh's cross conveyor technology and became curious," says Roland Schönleber, Production Manager at the main plant in Schwandorf, about the start of the partnership. In addition to the innovative technology and the variable system modules, the competent people from Wimsheim even have experience in Brazil. The joint development was completed quickly and the customized system was set up on site using lead assembly. "That was important to us," says Schönleber. This meant that the Brazilian fitters were already familiar with the plant technology.

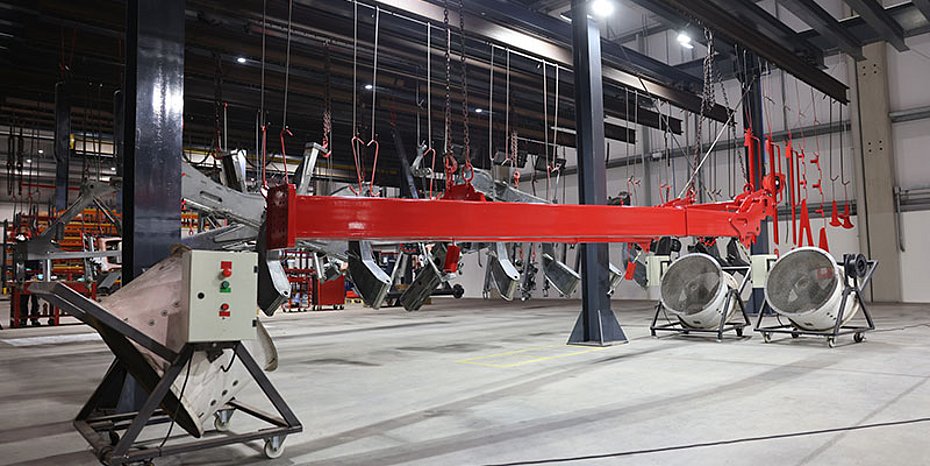

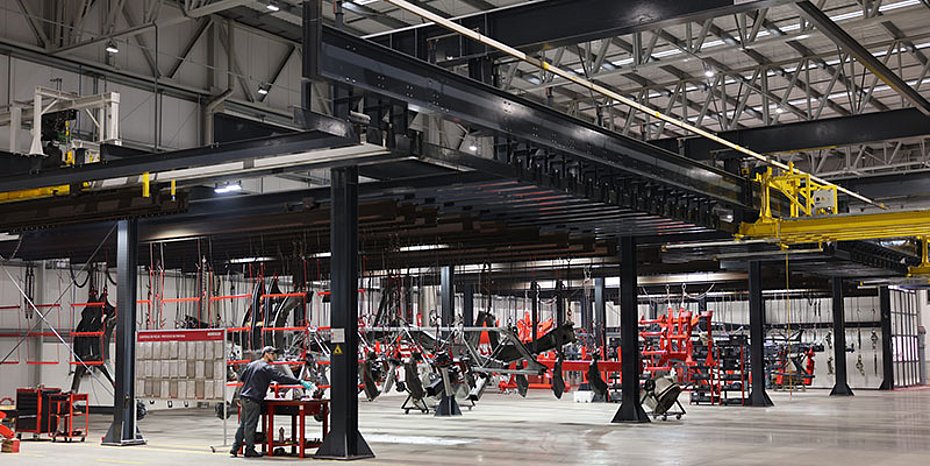

The coating system in Curitiba was initially designed primarily for manual operation and, like all Jumbo Coat systems, has a modular structure. It currently houses five process booths and a spacious loading station with a parking lot, which are connected via traverses and two electric cross-travel platforms with integrated lifting and lowering stations. The individual modules are arranged in two parallel rows according to the work processes. This keeps the walking distances short despite the generous floor space. The choice of work cabins was also planned pragmatically. Although Horsch only paints steel in Brazil, they require different processing methods due to the variety of products. As a result, there is a blasting and washing booth for pre-treatment and a choice between powder and wet paint for coating. "We can coat all machine parts in the system, regardless of their properties, geometry or size. And with the best results," says Boldt, appreciating the versatility of the system. The differences in size are immense. From handy small parts to large steel frames, everything runs through the same chambers. The limit is 12 x 3 x 3 m and three tons per workpiece carrier.

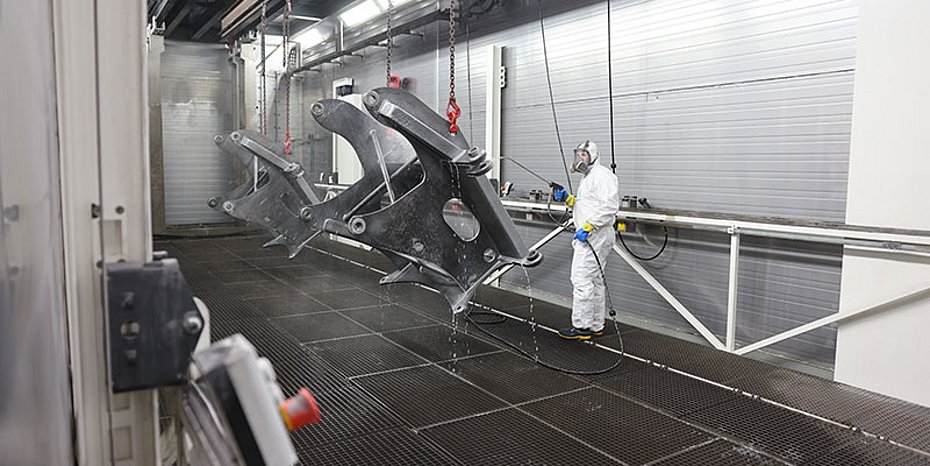

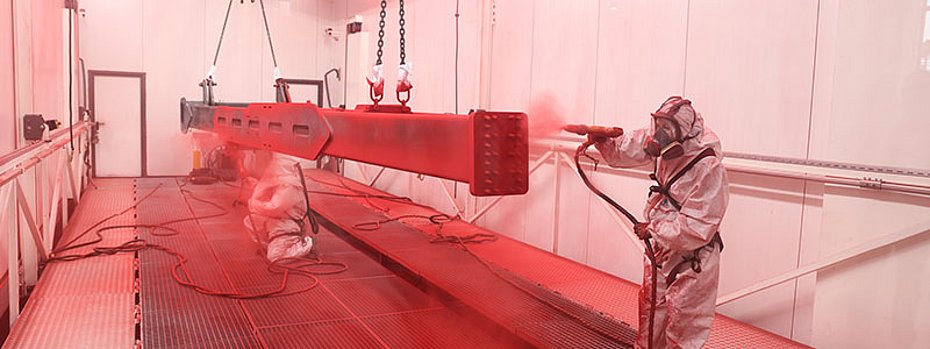

Despite the largely manual operation, Horsch also focuses on efficiency and sustainability in Brazil. To this end, Meeh has equipped the blasting, washing and powder booths with a recovery system. Washing takes place in recirculation mode and, depending on the number and width of the workpieces, either manually or using the two automatic spray rims. The parts go through a total of three rinsing cycles, during which they are degreased, phosphated and rinsed with demineralized water. To increase the service life of the media, Meeh cascades the baths and produces the necessary demineralized water using a water treatment system and a vacuum evaporator. The amount of fresh water required is therefore kept to a minimum. Right next to the washing cabin are two ovens heated indirectly by gas. Both washed and powder-sprayed workpieces dry in them, sometimes simultaneously. "Depending on its load, each traverse is assigned an individual drying time, the expiry of which is indicated acoustically and visually," Ulrich Meeh explains his system. In the powder spray booth, Horsch only processes red paint, which, together with the return of excess powder, also contributes to the efficiency of the system. This is because color changes are usually associated with higher paint, cleaning and time expenditure. Horsch appropriately paints everything in gray in the wet paint area and uses a highly reactive, fast-drying paint system. This means that the parts are already dust-dry as soon as they leave the wet paint booth and can be stored in the buffer area until the paint is completely dry.

In pre-treatment and powder coating, Meeh has installed several special features that make it much easier to handle workpieces of different sizes. For example, the lifting platforms in the cabs can be moved independently of each other so that the working height can be individually adapted to the respective requirements. In addition, two automated swivel devices originally developed by Horsch have been installed especially for the large tanks of the Maestro seed drills. With their help, the employees turn the heavy hoppers until the opening is in a horizontal position. This makes it much easier to process the inside of the tanks.

When designing the facility, the team took future expansion into account and provided open areas for additional process cabins and parking spaces. "The market situation and capacity utilization of the plant are showing us sooner than expected how sensible our forward-looking planning was," says Boldt. This year, the Brazilians are planning to automate the cross-travel platforms together with Meeh, and a second powder booth will relieve the wet paint area in the foreseeable future. Thanks to the practical modular design, the cost of these measures remains extremely low. Schönleber is also completely satisfied with the plant and the process in Brazil. "The cooperation is excellent, which is why we have already earmarked Meeh for further international plant projects." (OM-9/25)
