New production process for metal-polymer electricity collectors

A new roll-to-roll process has been developed for applying metal layers to polymer films. This allows conventional current collectors with metal foils to be replaced by metal-on-polymer current collectors.

The Fraunhofer FEP has developed a new roll-to-roll production process for the manufacture of metal-on-polymer current collectors. This technology enables the precise deposition of copper and aluminum layers on polymer foils to produce current collectors with comparable electrical conductivity and thickness to conventional metal foil-based current collectors. These results provide the industry with a valuable basis for the optimization of lithium-ion batteries.

It's hard to imagine our modern world without lithium-ion batteries. They enable us to use mobile devices such as smartphones, tablets and robot vacuum cleaners as well as electromobility. However, the many advantages such as high energy density, compact design and long service life are offset by a decisive disadvantage: due to the properties of lithium (highly flammable and quickly reactive), there is always a certain risk of fire. Overcharging, damage or overheating can lead to an uncontrolled release of the stored energy. This is called "thermal runaway".

The process developed makes it possible to replace conventional current collectors, usually metal foils, with metal-on-polymer current collectors. These consist of polymer foils coated on both sides with a thin layer of aluminum or copper. These current collectors offer several advantages: they reduce the weight of the collector, which leads to a higher energy density of the cell. Even more important, however, is the safety aspect: should a short circuit occur in the cell, the polymer substrate melts and interrupts the current path. This prevents further heat build-up and thermal runaway.

As part of the PolySafe project funded by the German Federal Ministry of Education and Research (BMBF), the Fraunhofer FEP developed a new process for the deposition of metal coatings in a roll-to-roll process. In this process, the metal layers are applied to the polymer films by electron beam evaporation. Claus Luber, technical project manager, explains: "The challenge was to design the polymer films and the coating process in such a way that a thickness of the current collector comparable to current metal films and optimum electrical conductivity of the metal layer can be guaranteed." The aim was to gain a holistic understanding of the influence of the parameters of the belt run, substrate pre-treatment and metal evaporation and to develop optimum process settings to achieve the technological and economic requirements. Another challenge was to minimize the heat load during the deposition process, which was achieved by using a special cooling method, a gas cooling roller from Von Ardenne GmbH. This solution ensures high film quality and high productivity.

The research team was able to successfully demonstrate the deposition of thick copper and aluminum layers on 12 µm thick PET films. The deposition was carried out in a roll-to-roll process on a roll width of up to 60 cm. The results include:

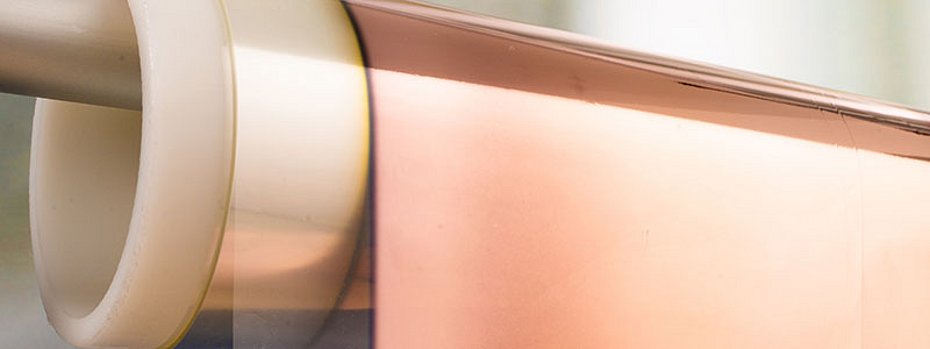

Copper: coating on both sides using a two-step process with copper layers up to 1 µm thick on each side; the copper layer was compact and the film remained without significant wrinkling - ideal for further processing in battery production.

Aluminum: Coating on both sides using a two-stage process with aluminum layers up to 1 µm thick on each side. Here too, the film was wrinkle-free, confirming its suitability for further processing for electrode coating.

The metal-polymer current collectors produced using the new technology were successfully integrated into pouch cells by the project partner TU Braunschweig. These cells were tested for their electrochemical properties and compared with conventional reference cells. In these tests, the cells with the metal-polymer current collectors demonstrated similar performance and cycle stability to the reference cells at different charging and discharging rates.

With the new roll-to-roll process, metal-polymer collectors can be successfully produced using semi-industrial processes. The research results prove that these processes are suitable for producing current collectors that have the potential to increase the energy density of battery cells while minimizing safety risks. The new production process provides the industry with the basis for the further development of lithium-ion batteries with improved properties. (OM-9/25)
