Mahr: Automated simultaneous measurement of surface roughness and contour

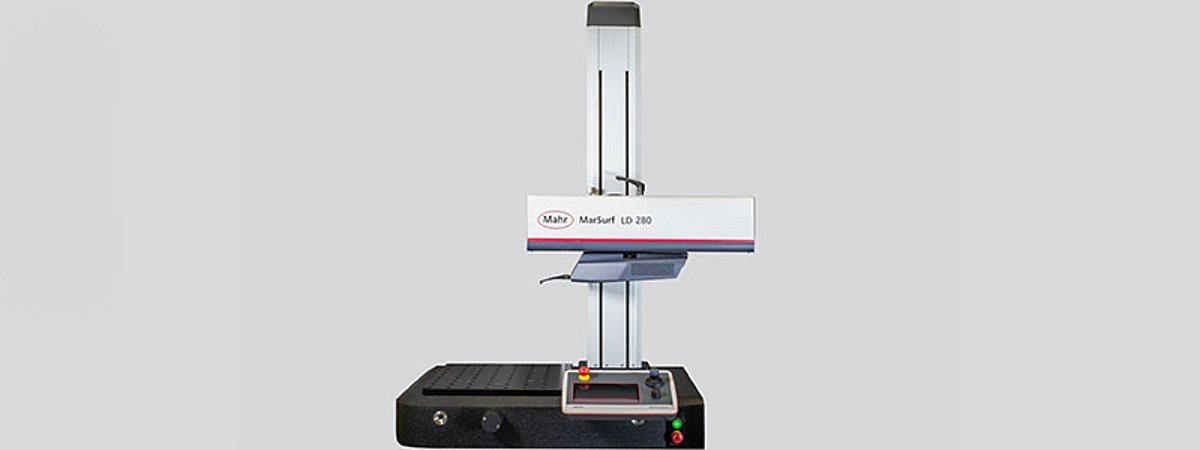

In order to measure roughness and contour simultaneously, the MarSurf LD 140/LD 280 is equipped with a newly developed tactile probe system. Its probe arm unit only records the measurement data once, which the software can then evaluate twice for both contour and roughness features if required. This process measures workpiece contours, straightness and surface deviations using the stylus method. The device is available with two different X-axes - travel and measuring path 140 or 280 millimetres - with manual or motorized TY-axis as well as with a Z-axis in two heights. The combination of these features results in eight device variants with different degrees of automation. This means that the customer can always select the measuring station that best suits their individual requirements. The comprehensive portfolio of probe arms of different sizes and designs also qualifies the MarSurf LD 140/LD 280 for a wide range of measuring tasks at different measuring points. For geometry measurements, the probe arms guarantee maximum safety and precision thanks to their high rigidity.

Measuring the roughness and contour of surfaces in a wide range of industries

Wherever users want to evaluate small tolerances in the micrometer range or larger tolerances in a very small area, the MarSurf LD 140/LD 280 is the device of choice. Typical measuring tasks can be found in the automotive industry, for example on crankshafts, camshafts, connecting rods, engine or transmission components such as drive shafts, in mechanical engineering, for example on bearing raceways or hydraulic components with very small and precise edge breaks, in the aviation industry, for example on turbine components, and in the optical industry, especially for lenses and aspheres. As the tolerances for the measurements performed are generally very small, it is advisable to set up the device in an air-conditioned measuring room. Additional product specifications make the MarSurf LD 140/LD 280 a future-proof, state-of-the-art investment. For example, the device has extremely fast and precise positioning axes. Thanks to the large flexible grid plate, clamping positions are reproducible, which shortens set-up times. In addition, the probe arm unit can be easily changed manually without tools as it is magnetically attached to the probe system. Furthermore, a chip integrated in the probe arm ensures that the probe arm is recognized without confusion and that the probe force is set automatically. The MarSurf LD 140/280 is operated using the tried-and-tested MarWin software or the improved MarControl manual control panel connected to the control unit. The software has a wizard for calibrating the probe arms which, in combination with a motorized TY axis, increases user-friendliness.
