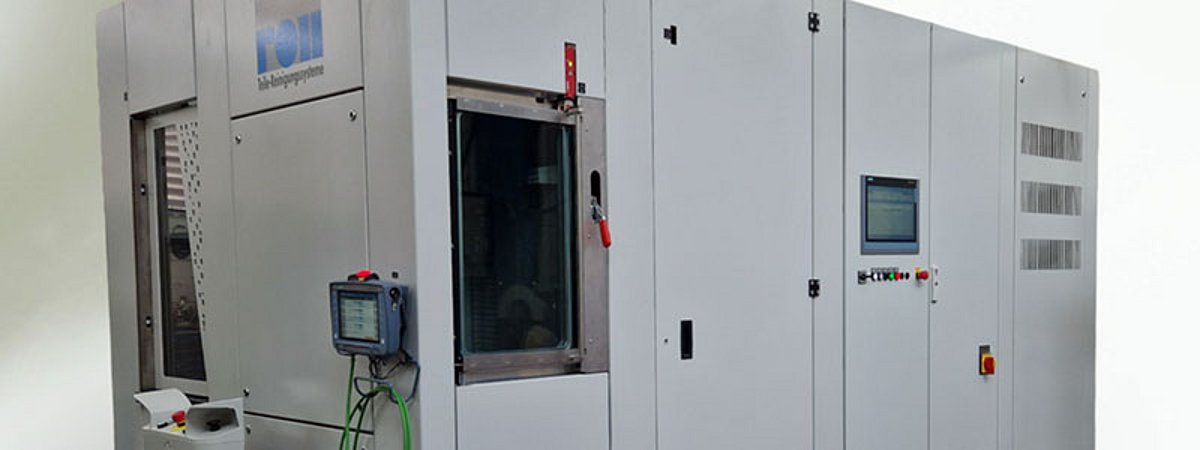

Highly flexible high-pressure water jet deburring system from Karl Roll
With the FlexJet HD high-pressure waterjet deburring system, plant manufacturer Karl Roll has developed an efficient solution for deburring and cleaning in a single work step. Karl Roll will also be exhibiting its solutions at this year's DeburringExpo 2023.
Areas that are difficult to access, such as internal and intersecting bores, undercuts and blind holes, are a challenge when deburring machined components. For these tasks, Karl Roll has developed the highly flexible and efficient Flexjet HD high-pressure waterjet deburring system. It enables deburring and cleaning with approximately 500 bar water pressure in a single work step.
The rotary table integrated into the treatment chamber with pneumatic connections for automatic workpiece clamping devices is designed for components with a diameter of up to 450 mm and a maximum height of 550 mm. The maximum workpiece weight including clamping device is 100 kg. For precise and reproducible results, the workpiece can be rotated during the process and moved via the X axis. In parallel, the nozzles can be moved via the Y and Z axes. The targeted treatment removes and discharges adhering tinsel burrs, for example from cross and deep holes, as well as clamping chips, welding beads and scale layers. Karl Roll will be represented at DeburringExpo 2023 at booth 215.
