Gema vertical module for targeted positioning of the coating gun
The ZA17 vertical module from Gema presented at PaintExpo 2026, in combination with the ZS05 axis, enables precise positioning of gun axes for complex coatings. The modular system increases efficiency, optimizes coating zones and integrates cleaning and control.

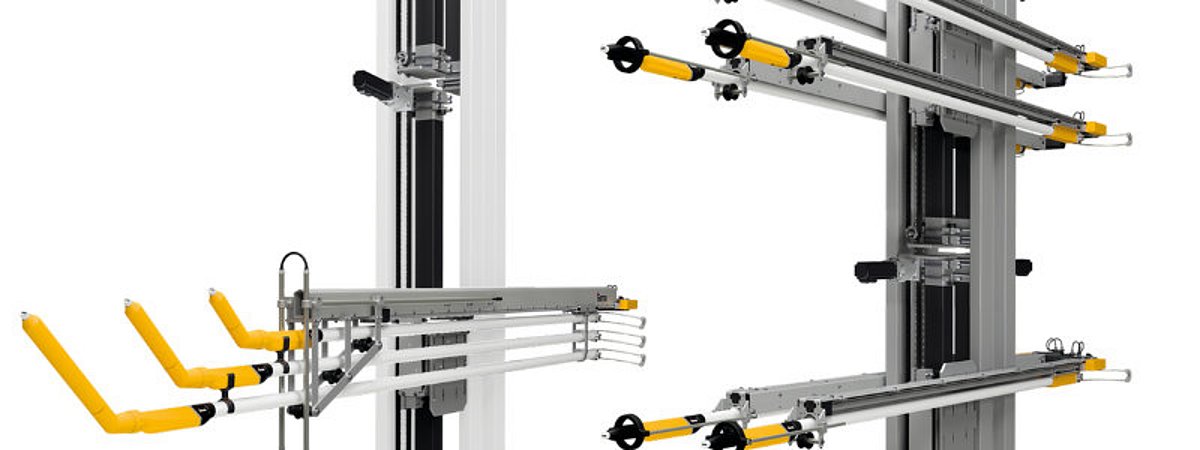

The new Gema ZA17 vertical module in combination with the fixed ZS05 axis positions the UA05 and UA05-x gun axes precisely on the coating object and, according to the manufacturer, guarantees perfect coating results for the most complex application requirements and difficult part geometries. Up to six ZA17 vertical modules can be mounted on one ZS05 axis, with each module working independently of the others. The ZA17 modules either move the coating guns to a variable fixed position or oscillate over a surface, enabling very precise coating of complex parts and inclined substrates.
Gema innovations at the PaintExpo 2026
Two UA05 gun axes or one UA05-x gun axis can be mounted on each ZA17 module, with a total of eight UA05 gun axes per ZS05 axis. The vertical gun spacing of 110 - 300 mm reduces the distance between the coating zones and maximizes the effectiveness of the coating in recessed areas. Further product highlights are the integrated cleaning function of the guns by blowing off on the UA05 and UA05-x axes for a clean working environment as well as the compact and space-saving design of all axes. The axes are programmable with the MagicControl 4.0 control system and can be integrated into the control system via bus/CAN bus technology, which enables performance feedback and monitoring. Gema will be exhibiting this innovation at PaintExpo 2026 in Hall 2, Stand 2426.
